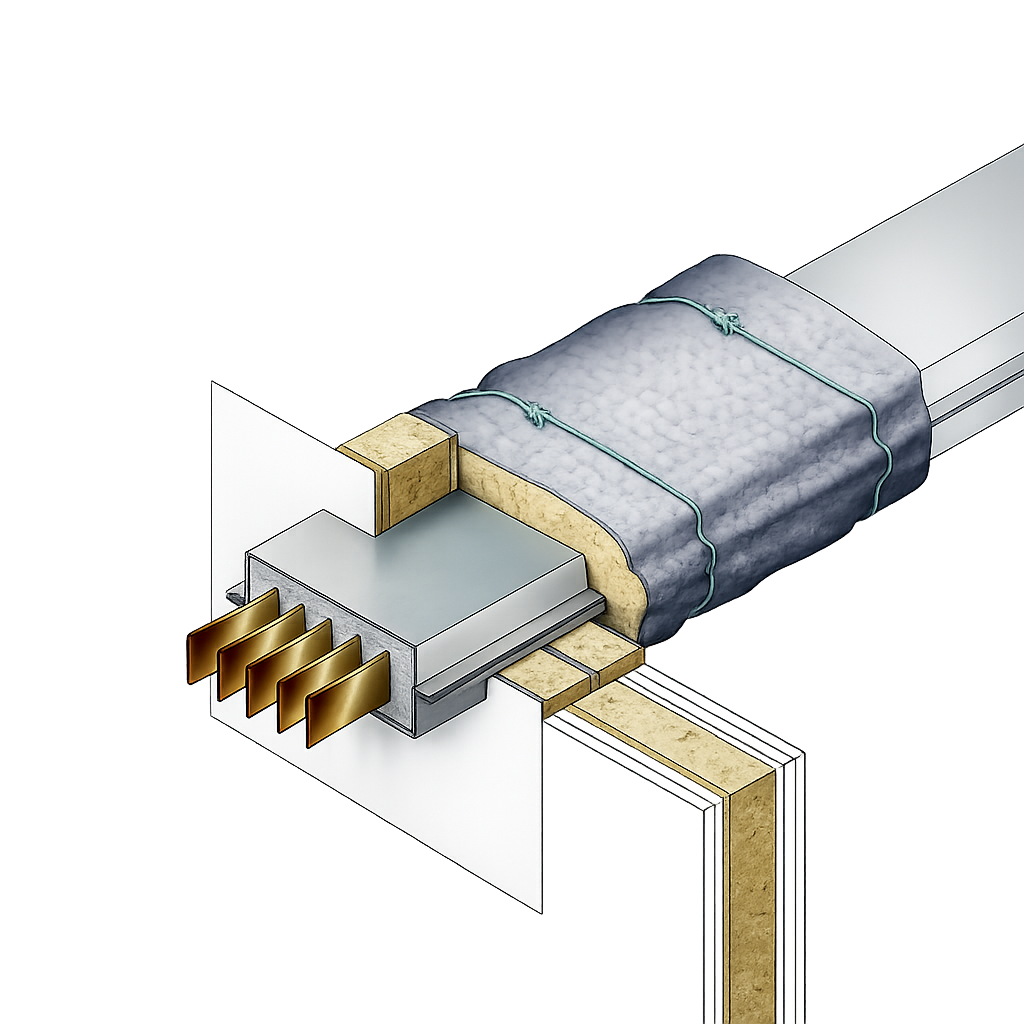

Busbar Trunking Wall Penetration Unit | Fire Rated Busway Wall Penetration System
The Busbar Trunking Wall Penetration Unit is designed to safely route busbar trunking systems through walls and partitions while maintaining fire protection, mechanical stability, and electrical safety. It ensures a secure, sealed, and code-compliant installation for commercial, industrial, and infrastructure projects.
The Busbar Trunking Wall Penetration Unit is a specialized accessory engineered to provide a safe and reliable passage for busbar trunking systems through concrete walls, fire-rated partitions, and structural barriers. It maintains the integrity of the electrical distribution system while preserving the fire resistance and structural performance of the building.
Manufactured from high-strength galvanized steel with fire-resistant insulation materials, the Wall Penetration Unit offers excellent mechanical support, corrosion resistance, and long-term durability. It minimizes vibration, protects the busbar during wall crossings, and ensures a neat, professional installation.
Designed for easy integration with busbar trunking systems, the unit simplifies installation and maintenance while complying with international electrical and fire safety standards. It is widely used in commercial buildings, industrial plants, hospitals, airports, data centers, shopping malls, and other critical infrastructure where busbar systems pass through walls or fire-rated compartments.
The Wall Penetration Unit enhances system safety, improves installation quality, and provides reliable performance throughout the life of the electrical distribution network.
Key Features
- Safe Busbar Wall Penetration
- Maintains Fire Barrier Integrity
- Heavy-Duty Steel Construction
- Fire & Heat Resistant Insulation
- High Mechanical Strength
- Corrosion Resistant Finish
- Easy Installation & Maintenance
- Secure & Stable Busbar Support
- Long Service Life
- Suitable for Fire-Rated Walls & Partitions
Applications
- Commercial Buildings
- Industrial Facilities
- Data Centers
- Hospitals
- Shopping Malls
- Airports
- High-Rise Buildings
- Manufacturing Plants
- Infrastructure Projects
- Electrical Distribution Systems
Typical Specifications
| Feature | Details |
| Product Type | Busbar Trunking Wall Penetration Unit |
| Rated Current | 400A–6300A (Model Dependent) |
| Rated Voltage | Up to 690V AC |
| Frequency | 50/60 Hz |
| Conductor Compatibility | Copper / Aluminum Busbar Systems |
| Enclosure Material | Galvanized Steel / Powder-Coated Steel |
| Insulation | Fire-Resistant Insulation Material |
| Protection Rating | IP42 / IP54 / IP65 (System Dependent) |
| Installation Type | Wall Penetration |
| Standards | IEC 61439-6 |
