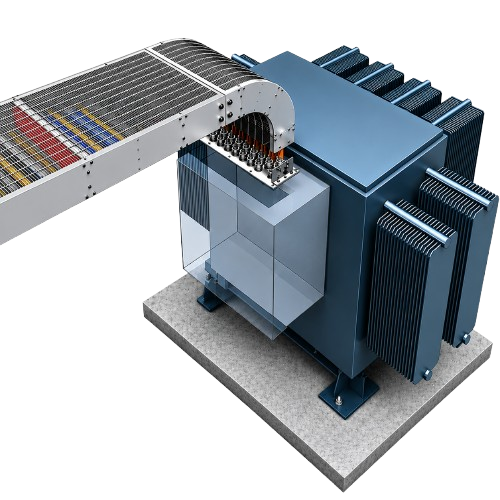

Busbar Trunking Transformer Connection Unit | Busway Transformer Connection System
The Busbar Trunking Transformer Connection Unit is designed to provide a safe, reliable, and efficient connection between transformers and busbar trunking systems. It ensures maximum power transfer, reduced energy loss, and secure electrical distribution for commercial, industrial, and infrastructure applications.
The Busbar Trunking Transformer Connection Unit is a purpose-built interface that connects power transformers directly to busbar trunking systems, delivering a safe, compact, and highly efficient power distribution solution. It eliminates the need for multiple large power cables, reducing installation complexity, energy losses, and maintenance requirements.
Manufactured from premium-quality galvanized steel or aluminum housing with high-conductivity copper or aluminum conductors, the Transformer Connection Unit provides outstanding electrical performance, excellent mechanical strength, and long-term durability. Its precision-engineered design ensures secure alignment with transformer terminals, minimizing contact resistance and maximizing system reliability.
Designed to withstand high fault currents and demanding operating conditions, the unit offers excellent insulation, superior short-circuit withstand capability, and dependable performance in mission-critical electrical installations. It also features a modular construction for fast installation, simplified maintenance, and easy integration with existing busbar trunking systems.
Ideal for power plants, substations, commercial buildings, industrial facilities, hospitals, airports, data centers, and large infrastructure projects, the Transformer Connection Unit enhances power distribution efficiency while meeting international electrical safety standards.
Key Features
- Direct Transformer-to-Busbar Connection
- High Electrical Conductivity
- Low Contact Resistance & Power Loss
- Heavy-Duty Steel or Aluminum Enclosure
- High Short-Circuit Withstand Capability
- Compact & Space-Saving Design
- Easy Installation & Maintenance
- Corrosion & Rust Resistant
- Long Service Life
- Safe & Reliable Power Distribution
Applications
- Power Transformers
- Electrical Substations
- Commercial Buildings
- Industrial Facilities
- Manufacturing Plants
- Hospitals
- Data Centers
- Airports
- Shopping Malls
- Infrastructure Projects
Typical Specifications
| Feature | Details |
| Product Type | Busbar Trunking Transformer Connection Unit |
| Rated Current | 400A–6300A (Model Dependent) |
| Rated Voltage | Up to 690V AC |
| Frequency | 50/60 Hz |
| Conductor Material | Copper / Aluminum |
| Enclosure Material | Galvanized Steel / Powder-Coated Steel / Aluminum |
| Protection Rating | IP42 / IP54 / IP65 (Model Dependent) |
| Connection Type | Transformer to Busbar Trunking |
| Installation Type | Transformer Terminal Connection |
| Standards | IEC 61439-6 |
