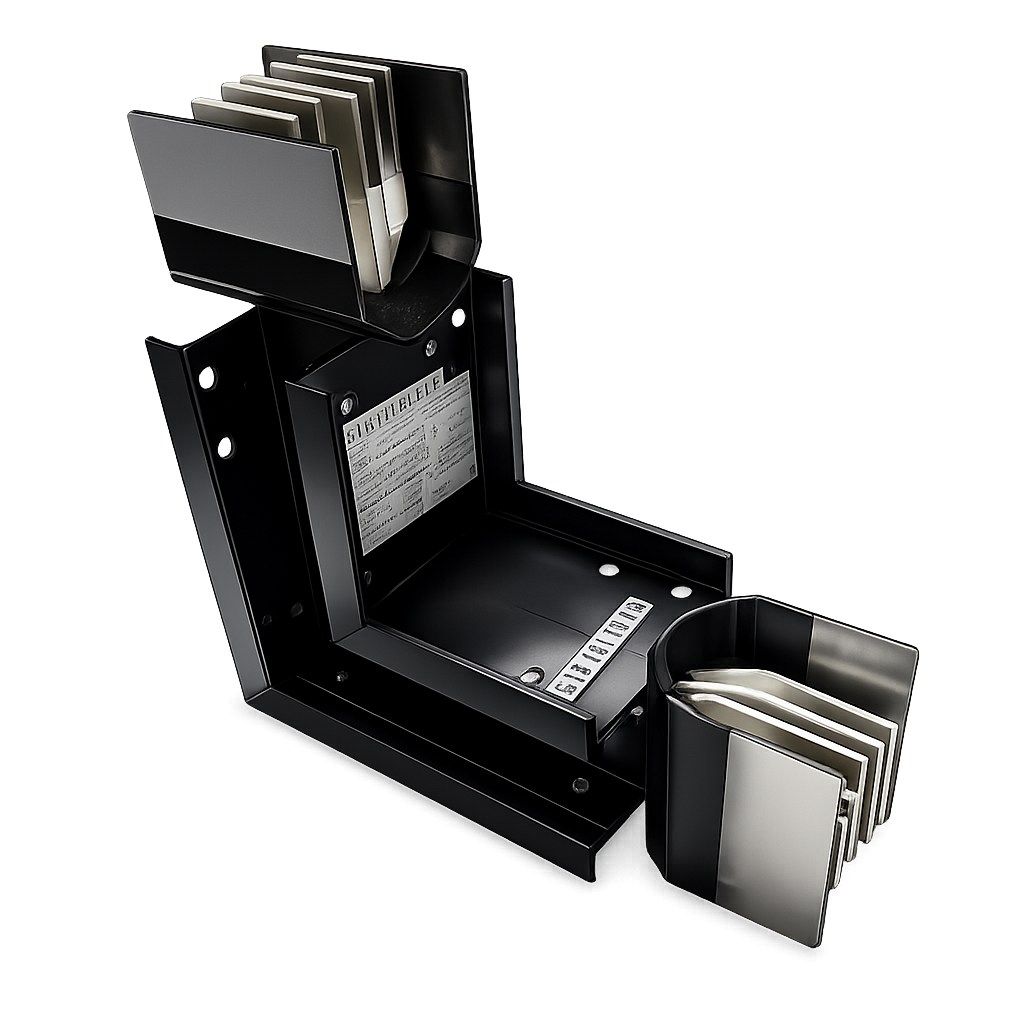

Busbar Trunking Vertical Elbow | Busway Vertical Bend for Power Distribution
The Busbar Trunking Vertical Elbow is designed to change the direction of a busbar trunking system in the vertical plane, ensuring safe, efficient, and uninterrupted power distribution. It provides a secure connection with minimal power loss, making it ideal for commercial, industrial, and infrastructure electrical installations.
The Busbar Trunking Vertical Elbow is a precision-engineered fitting used to redirect busbar trunking systems vertically, allowing seamless power distribution between different floor levels or structural elevations. It maintains continuous electrical connectivity while ensuring high current-carrying capacity, mechanical strength, and system reliability.
Constructed from premium-grade galvanized steel or aluminum housing with high-conductivity copper or aluminum conductors, the Vertical Elbow offers excellent corrosion resistance, low electrical losses, and long-lasting durability. Its modular design enables quick installation, precise alignment, and easy integration with straight busbar sections, reducing installation time and maintenance costs.
Designed in accordance with international standards, the Vertical Elbow provides excellent insulation, high short-circuit withstand capability, and dependable performance in demanding environments. It is widely used in high-rise buildings, industrial plants, shopping malls, hospitals, airports, data centers, and other large-scale electrical distribution systems where vertical routing is required.
Key Features
- Vertical Direction Change for Busbar Systems
- High Electrical Conductivity
- Low Power Loss
- Heavy-Duty Steel or Aluminum Enclosure
- Compact & Modular Design
- Easy Installation & Maintenance
- Excellent Mechanical Strength
- Corrosion & Rust Resistant
- Long Service Life
- Safe & Reliable Power Distribution
Applications
- Commercial Buildings
- High-Rise Buildings
- Industrial Facilities
- Manufacturing Plants
- Data Centers
- Hospitals
- Shopping Malls
- Airports
- Infrastructure Projects
- Electrical Distribution Systems
Typical Specifications
| Feature | Details |
| Product Type | Busbar Trunking Vertical Elbow |
| Rated Current | 400A–6300A (Model Dependent) |
| Rated Voltage | Up to 690V AC |
| Frequency | 50/60 Hz |
| Conductor Material | Copper / Aluminum |
| Enclosure Material | Galvanized Steel / Powder-Coated Steel / Aluminum |
| Protection Rating | IP42 / IP54 / IP65 (Model Dependent) |
| Elbow Angle | 90° (Custom Angles Available) |
| Installation Type | Vertical Connection |
| Standards | IEC 61439-6 |
