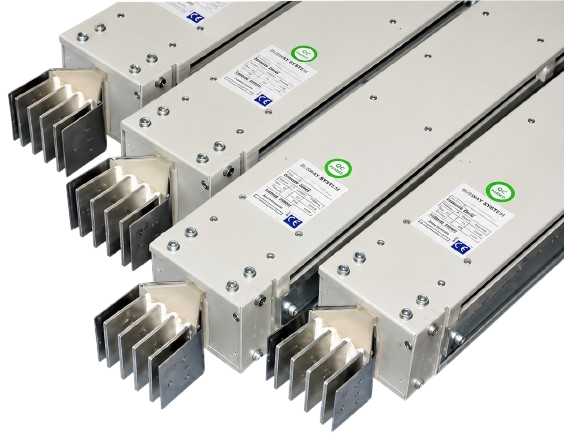

Straight Busbar Trunking | Low Voltage Busway System for Power Distribution
The Straight Busbar Trunking is a high-performance power distribution system designed for the safe and efficient transmission of electricity over straight-line installations. Engineered for low power loss, high current capacity, and easy installation, it is ideal for commercial, industrial, and infrastructure projects.
The Straight Busbar Trunking is the core component of a busbar trunking system, providing a reliable and efficient solution for distributing electrical power across commercial, industrial, and infrastructure facilities. Designed for straight-line installations, it offers superior electrical performance, reduced voltage drop, and enhanced safety compared to conventional cable systems.
Manufactured using premium-grade copper or aluminum conductors enclosed in a robust galvanized steel or aluminum housing, the Straight Busbar Trunking delivers excellent conductivity, high mechanical strength, and outstanding corrosion resistance. Its compact, modular construction enables quick installation, easy expansion, and simplified maintenance, making it an ideal choice for modern electrical distribution systems.
Designed to withstand demanding operating conditions, the system provides excellent insulation, high short-circuit withstand capability, and dependable long-term performance. It is suitable for carrying high electrical loads while minimizing energy losses and installation space.
The Straight Busbar Trunking is widely used in commercial buildings, industrial plants, hospitals, airports, shopping malls, data centers, power plants, and other large-scale infrastructure projects requiring safe, efficient, and scalable power distribution.
Key Features
- Efficient Straight-Line Power Distribution
- High Current Carrying Capacity
- Low Voltage Drop & Power Loss
- Copper or Aluminum Conductors
- Heavy-Duty Steel or Aluminum Enclosure
- Compact & Modular Design
- Easy Installation & Future Expansion
- High Mechanical Strength
- Corrosion & Rust Resistant
- Long Service Life & Low Maintenance
Applications
- Commercial Buildings
- Industrial Facilities
- Manufacturing Plants
- Data Centers
- Hospitals
- Shopping Malls
- Airports
- High-Rise Buildings
- Power Plants
- Infrastructure Projects
Typical Specifications
| Feature | Details |
| Product Type | Straight Busbar Trunking |
| Rated Current | 400A–6300A (Model Dependent) |
| Rated Voltage | Up to 690V AC |
| Frequency | 50/60 Hz |
| Conductor Material | Copper / Aluminum |
| Enclosure Material | Galvanized Steel / Aluminum |
| Protection Rating | IP42 / IP54 / IP65 / IP66 (Model Dependent) |
| Installation Type | Straight Horizontal or Vertical Run |
| Busbar Length | Standard 3m (Custom Lengths Available) |
| Standards | IEC 61439-6 |
