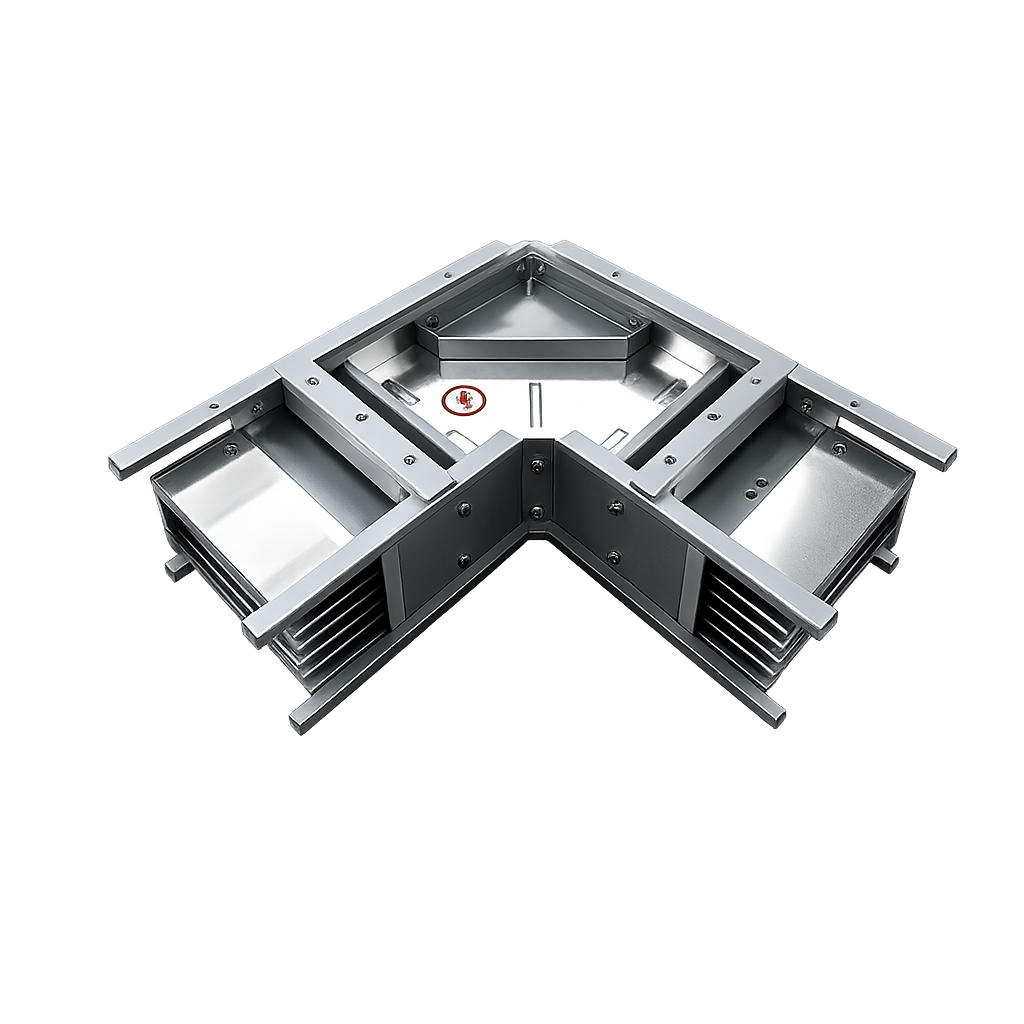

Busbar Trunking Horizontal Elbow | Busway Horizontal Bend for Power Distribution
The Busbar Trunking Horizontal Elbow is designed to change the direction of a busbar trunking system on the horizontal plane while maintaining safe, reliable, and uninterrupted power distribution. It provides a secure connection with minimal power loss, making it ideal for commercial, industrial, and infrastructure electrical installations.
The Busbar Trunking Horizontal Elbow is a precision-engineered fitting used to redirect busbar trunking systems horizontally, allowing flexible routing around building structures and installation obstacles. It ensures continuous electrical connectivity while maintaining high current-carrying capacity and system reliability.
Manufactured from premium-grade galvanized steel or aluminum housing with high-conductivity copper or aluminum busbars, the Horizontal Elbow offers exceptional mechanical strength, corrosion resistance, and long-term durability. Its modular construction allows quick installation and seamless integration with straight busbar sections, minimizing installation time and maintenance requirements.
Designed in accordance with international standards, the Horizontal Elbow provides excellent insulation, high short-circuit withstand capability, and dependable performance in demanding environments. It is widely used in commercial buildings, factories, shopping malls, hospitals, airports, data centers, and other large-scale electrical distribution systems where directional changes are required.
Key Features
- Horizontal Direction Change for Busbar Systems
- High Electrical Conductivity
- Low Power Loss
- Heavy-Duty Steel or Aluminum Enclosure
- Compact & Modular Design
- Easy Installation & Maintenance
- Excellent Mechanical Strength
- Corrosion & Rust Resistant
- Long Service Life
- Reliable & Safe Power Distribution
Applications
- Commercial Buildings
- Industrial Facilities
- Data Centers
- Hospitals
- Shopping Malls
- Airports
- High-Rise Buildings
- Manufacturing Plants
- Infrastructure Projects
- Electrical Distribution Networks
Typical Specifications
| Feature | Details |
| Product Type | Busbar Trunking Horizontal Elbow |
| Rated Current | 400A–6300A (Model Dependent) |
| Rated Voltage | Up to 690V AC |
| Frequency | 50/60 Hz |
| Conductor Material | Copper / Aluminum |
| Enclosure Material | Galvanized Steel / Powder-Coated Steel / Aluminum |
| Protection Rating | IP42 / IP54 / IP65 (Model Dependent) |
| Elbow Angle | 90° (Custom Angles Available) |
| Installation Type | Horizontal Connection |
| Standards | IEC 61439-6 |
